Heatmap Chart

API information regarding each chart is not addressed in this document. Refer to the API Guide.

Creating the Chart

There are two different ways to create the Heatmap chart. The Heatmap chart can be created through the constructor function or the static function. The two methods both result in returning an instance of the chart. The HTML element in which the chart is drawn el, data data, and the options object options are taken as parameters. If the element in which the chart is drawn contains elements other than the chart itself, it may unintentionally affect the chart. Therefore, it is recommended that you use an empty HTML element.

import { HeatmapChart } from '@toast-ui/chart';

const chart = new HeatmapChart({el, data, options});

// or

import Chart from '@toast-ui/chart';

const chart = Chart.heatmapChart({el, data, options});

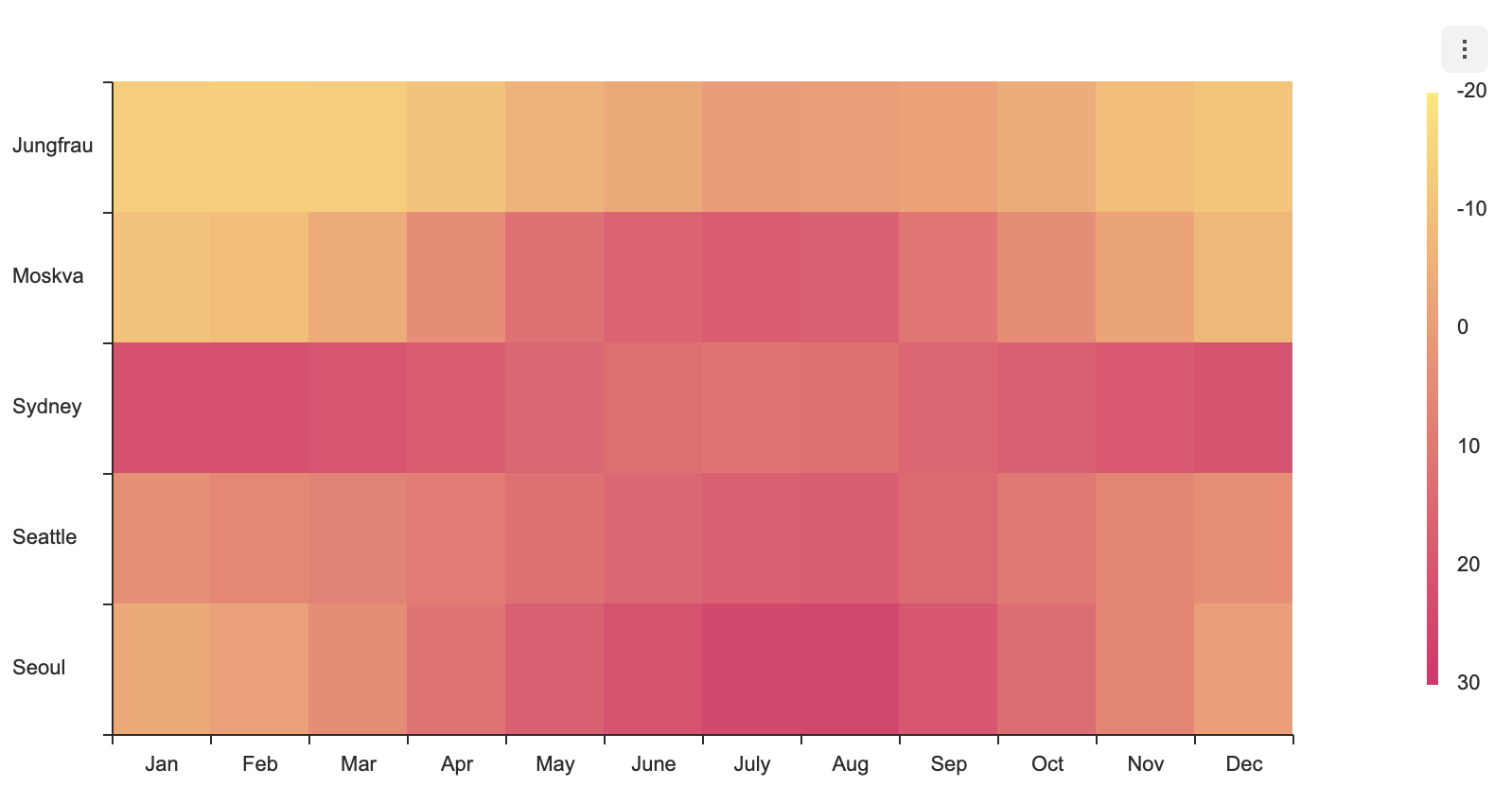

Basic Chart

Data Type

The data is entered as series and categories. The categories represent the labels for the x-axis and the y-axis, and the series represent the numeric array that corresponds to the x-axis and the y-axis.

const data = {
  categories: {
    x: ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'June', 'July', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'],
    y: ['Seoul', 'Seattle', 'Sydney', 'Moskva', 'Jungfrau'],
  },
  series: [
    [-3.5, -1.1, 4.0, 11.3, 17.5, 21.5, 24.9, 25.2, 20.4, 13.9, 6.6, -0.6],
    [3.8, 5.6, 7.0, 9.1, 12.4, 15.3, 17.5, 17.8, 15.0, 10.6, 6.4, 3.7],
    [22.1, 22.0, 20.9, 18.3, 15.2, 12.8, 11.8, 13.0, 15.2, 17.6, 19.4, 21.2],
    [-10.3, -9.1, -4.1, 4.4, 12.2, 16.3, 18.5, 16.7, 10.9, 4.2, -2.0, -7.5],
    [-13.2, -13.7, -13.1, -10.3, -6.1, -3.2, 0.0, -0.1, -1.8, -4.5, -9.0, -10.9],
  ],
}


Options

options should be used as an object.

type options = {
  chart?: {
    //...
  }
  xAxis?: {
    //...
  }
  yAxis?: {
    //...
  }
  legend?: {
    //...
  }
  exportMenu?: {
    //...
  }
  tooltip?: {
    //...
  }
  responsive?: {
    //...
  }
  theme?: {
    // More explanations in the `theme` chapter.
  }
  series?: {
    selectable?: boolean;
    shift?: boolean;

    dataLabels?: {
      visible?: boolean;
      anchor?: DataLabelAnchor;
      offsetX?: number;
      offsetY?: number;
      formatter?: Formatter;
    }
  }
}

Common options that can be used with this chart are not addressed in this document. Refer to the respective options guide. (Links: chart Options, Axis, Legend, Export, Tooltip, responsive Options )

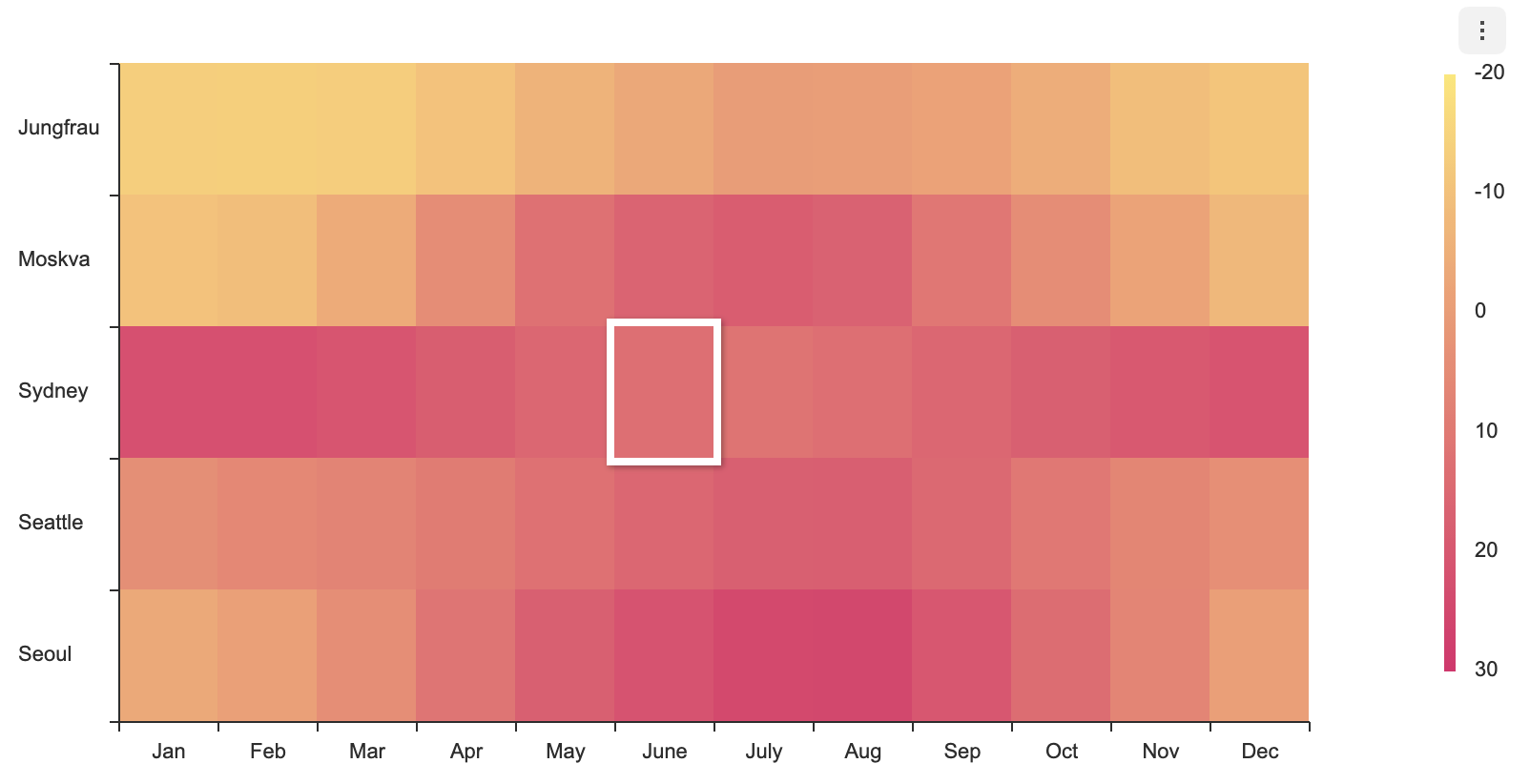

selectable


  • default: false

Makes the series selectable.

const options = {
  series: {
    selectable: true
  }
};

selectable option, accompanied by on API's selectSeries and unselectSeries, grants further control over the series.

dataLabels

Data labels display information regarding the series on the chart. The following are the options for dataLabels.

type options = {
  ...
  series?: {
    dataLabels?: {
      visible?: boolean;
      offsetX?: number;
      offsetY?: number;
      formatter?: (value) => string;
    }
  }
};
Name Type Details
visible boolean Whether to make the data label visible
offsetX number X offset of the data label position
offsetY number Y offset of the data label position
formatter function Takes the value of the data as its parameter and defines the format to be displayed
// basic
const options = {
  series: {
    dataLabels: { visible: true }
  }
};


Series Theme

The following is a list of themes that can be modified in the Heatmap chart.

interface HeatmapChartSeriesTheme {
  startColor: string;
  endColor: string;
  borderColor?: string;
  borderWidth?: number;
  select?: {
    color?: string;
    borderColor?: string;
    borderWidth?: number;
  };
  hover?: {
    color?: string;
    borderColor?: string;
    borderWidth?: number;
  };
  dataLabels?: {
    useSeriesColor?: boolean;
    fontSize?: number;
    fontFamily?: string;
    fontWeight?: string | number;
    color?: string;
    lineWidth?: number;
    textStrokeColor?: string;
    shadowColor?: string;
    shadowBlur?: number;
    textBubble?: {
      visible?: boolean;
      paddingX?: number;
      paddingY?: number;
      backgroundColor?: string;
      borderRadius?: number;
      borderColor?: string;
      borderWidth?: number;
      shadowColor?: string;
      shadowOffsetX?: number;
      shadowOffsetY?: number;
      shadowBlur?: number;
    }
  };
}
Name Type Details
startColor string The color of the starting value
endColor string The color of the ending value
borderColor string The color of the series border
borderWidth number The width of the series border
select object The style that is applied to the line when the series is selected and the series.selectable is set to true.
hover object The style that is applied when the user hovers over the data
dataLabels object Style for the data labels
dataLabels.useSeriesColor boolean Whether to use the series colors for the data label texts
dataLabels.lineWidth number Text stroke width
dataLabels.textStrokeColor string Text stroke color
dataLabels.shadowColor string Text shadow color
dataLabels.shadowBlur number Text shadow blue
dataLabels.fontSize number Font size
dataLabels.fontFamily string Font name
dataLabels.fontWeight string Font weight
dataLabels.color string Text color; does not work when useSeriesColor: true
dataLabels.textBubble object Text bubble configurations
dataLabels.textBubble.visible boolean Whether to use the text bubble
dataLabels.textBubble.paddingX number Horizontal padding
dataLabels.textBubble.paddingY number Vertical padding
dataLabels.textBubble.backgroundColor string Text bubble background color
dataLabels.textBubble.borderRadius number Text bubble border radius
dataLabels.textBubble.borderColor string Text bubble border color
dataLabels.textBubble.borderWidth number Text bubble border width
dataLabels.textBubble.shadowColor string Text bubble shadow color
dataLabels.textBubble.shadowOffsetX number Text bubble shadow x offset
dataLabels.textBubble.shadowOffsetY number Text bubble shadow y offset
dataLabels.textBubble.shadowBlur number Text bubble shadow blur

startColor and endColor

These values set the standard. The colors used for the data is data are decided with respect to the startColor and endColor values.

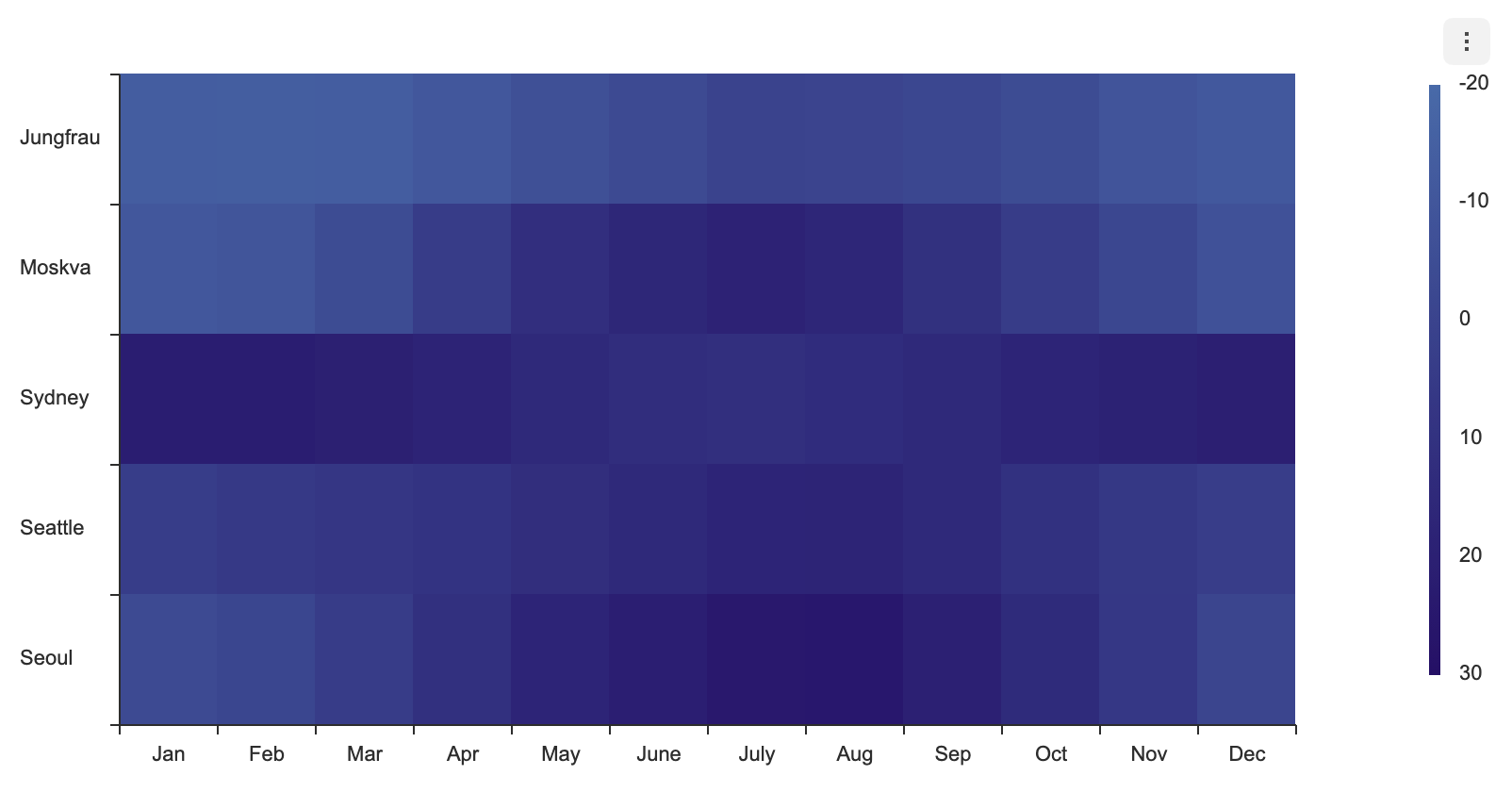

For a simple example, let's set the startColor to be #4A76B2,


and the endColor to be #221271. The higher colorValue will lead to a value that is closer to the endColor.


const options = {
  theme: {
    series: {
      startColor: '#4A76B2',
      endColor: '#221271'
    }
  }
}


The code below applies a theme to the data label to use text bubbles and to change the text styles.

const options = {
  series: {
    dataLabels: { visible: true }
  },
  theme: {
    series: {
      dataLabels: {
        fontFamily: 'monaco',
        fontSize: 9,
        fontWeight: '600',
        useSeriesColor: true,
        textBubble: {
          visible: true,
          backgroundColor: '#333333',
          paddingX: 1,
          paddingY: 1,
          borderRadius: 5
        }
      }
    }
  }
};
