Gauge Chart

API information regarding each chart is not addressed in this document. Refer to the API Guide.

Creating the Chart

There are two different ways to create the Gauge chart. The Gauge chart can be created through the constructor function or the static function. The two methods both result in returning an instance of the chart. The HTML element in which the chart is drawn el, data data, and the options object options are taken as parameters. If the element in which the chart is drawn contains elements other than the chart itself, it may unintentionally affect the chart. Therefore, it is recommended that you use an empty HTML element.

import { GaugeChart } from '@toast-ui/chart';

const chart = new GaugeChart({el, data, options});

// or

import Chart from '@toast-ui/chart';

const chart = Chart.gaugeChart({el, data, options});

Basic Chart

Data Type

the series value must be completed with the name and the data. The name is used to identify each series and its id must be unique.

const data = {
  series: [
    {
      name: 'Speed',
      data: [80],
    },
  ],
};

gauge-basic

Category Data Type

If you enter categories, the label displayed on the Circular Axis will display the category value.

const data = {
  categories: ['Apple', 'Watermelon', 'Blueberry', 'Grape', 'Orange'],
  series: [
    {
      name: 'Fruit',
      data: ['Orange'],
    },
  ],
};

gauge-basic-with-category

Options

options should be used as an object.

type options = {
  chart?: {
    //...
  }
  circularAxis?: {
    title?: string | {
      text: string;
      offsetX?: number;
      offsetY?: number;
    };
    label?: {
      interval?: number;
      formatter?: (value: string, axisLabelInfo: { axisName: AxisType; labels: string[]; index: number }) => string;
      margin?: number;
    };
    tick?: {
      interval?: number;
    };
    scale?: {
      min?: number;
      max?: number;
      stepSize?: 'auto' | number;
    };
  }
  exportMenu?: {
    //...
  }
  tooltip?: {
    //...
  }
  responsive?: {
    //...
  }
  theme?: {
    chart?: ChartTheme;
    title?: FontTheme;
    tooltip?: TooltipTheme;
    exportMenu?: ExportMenuTheme;
    circularAxis?: {
      label?: {
        fontSize?: number;
        fontFamily?: string;
        fontWeight?: string | number;
        color?: string;
        textBubble?: {
          visible?: boolean;
          paddingX?: number;
          paddingY?: number;
          backgroundColor?: string;
          borderRadius?: number;
          textAlign?: CanvasTextAlign;
          borderColor?: string;
          borderWidth?: number;
          shadowColor?: string;
          shadowOffsetX?: number;
          shadowOffsetY?: number;
          shadowBlur?: number;
        };
      };
      lineWidth?: number;
      strokeStyle?: string;
      dotColor?: string;
      title?: {
        fontSize?: number;
        fontFamily?: string;
        fontWeight?: string | number;
        color?: string;
      };
      tick?: {
        lineWidth?: number;
        strokeStyle?: string;
      };
    };
    plot?: {
      bands?: { barWidth?: number };
    };
    series?: {
      // More explanations in the `Series theme` chapter.
    };
  }
  plot?: {
    width?: number | undefined;
    height?: number | undefined;
    bands?: {
      color: string;
      range: number[] | string[];
      id?: string;
    }[];
  };
  series?: {
    solid?: boolean | { clockHand?: boolean };
    selectable?: boolean;
    clockwise?: boolean;
    angleRange?: {
      start?: number;
      end?: number;
    };
    dataLabels?: {
      visible?: boolean;
      offsetX?: number;
      offsetY?: number;
      formatter?: (value) => string;
    };
  }
}

Common options that can be used with this chart are not addressed in this document. Refer to the respective options guide. (Links: chart Options, Export, Tooltip, responsive Options, Plot )

selectable

Makes the series selectable.

  • default: false
const options = {
  series: {
    selectable: true
  }
};

gauge-selectable

selectable option, accompanied by on API's selectSeries and unselectSeries, grants further control over the series.

clockwise

Determines the direction in which the series is painted. As default, the series is painted in the clockwise direction and when it is set to false, the series will be painted in the counterclockwise direction.

  • default: true
const options = {
  series: {
    clockwise: false
  }
};

gauge-counter-clockwise

angleRange

The angleRange uses start and end options to determine the range of the arc.

Property Details
angleRange.start Arc's starting angle (default: 0)
angleRange.end Arc's ending angle (default: 360)
const options = {
  series: {
    angleRange: {
      start: 225,
      end: 135,
    }
  }
};

gauge-angleRanges

solid

The solid option allows the data to be represented as a radial bar. It can be used when the chart data is 1 series and 1 data.

  • default: false

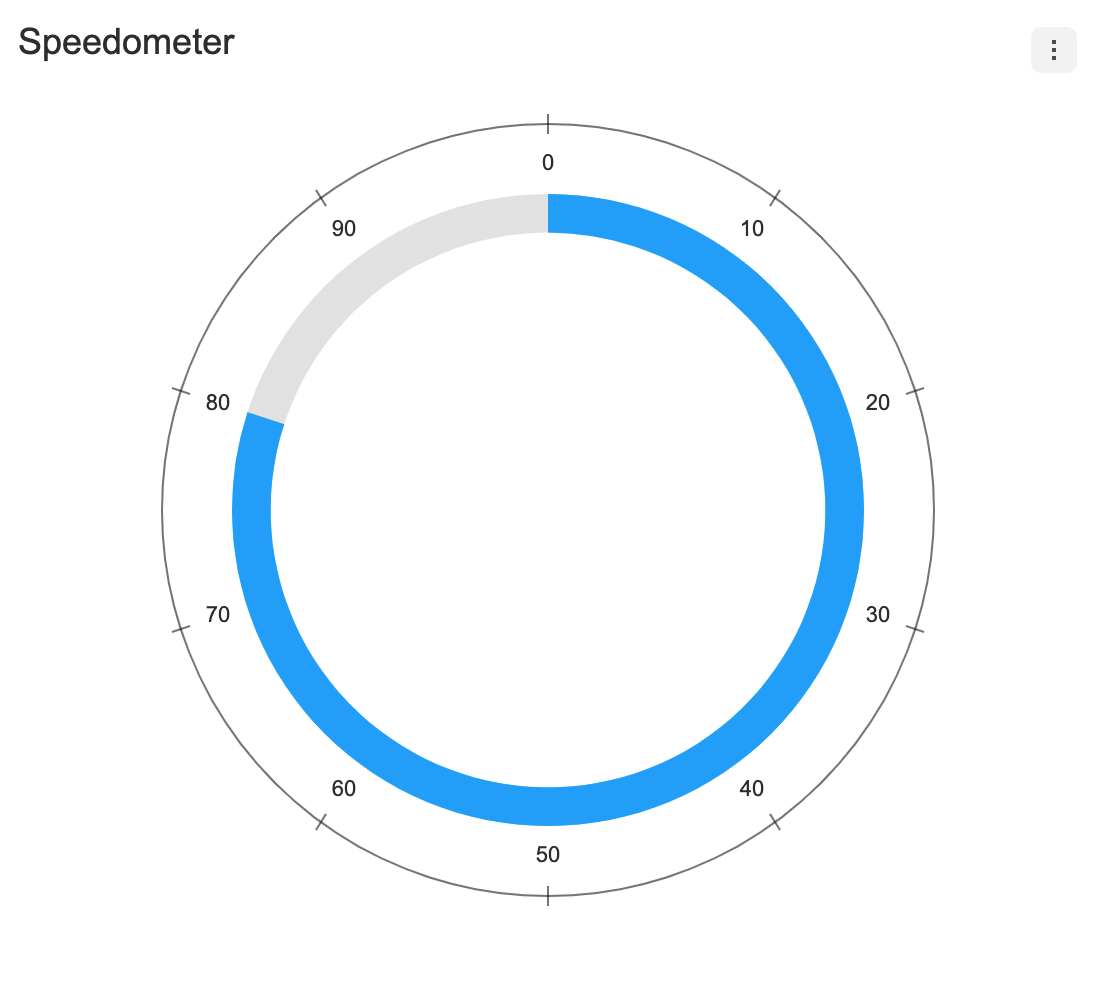

const options = {
  series: {
    solid: true
  }
};

gauge-solid-with-basic

When rendering a series in solid type, you can set whether to display a clock hand indicating a value.

  • default: false
series: {
  solid: { clockHand: true },
}

gauge-solid-with-clockhand

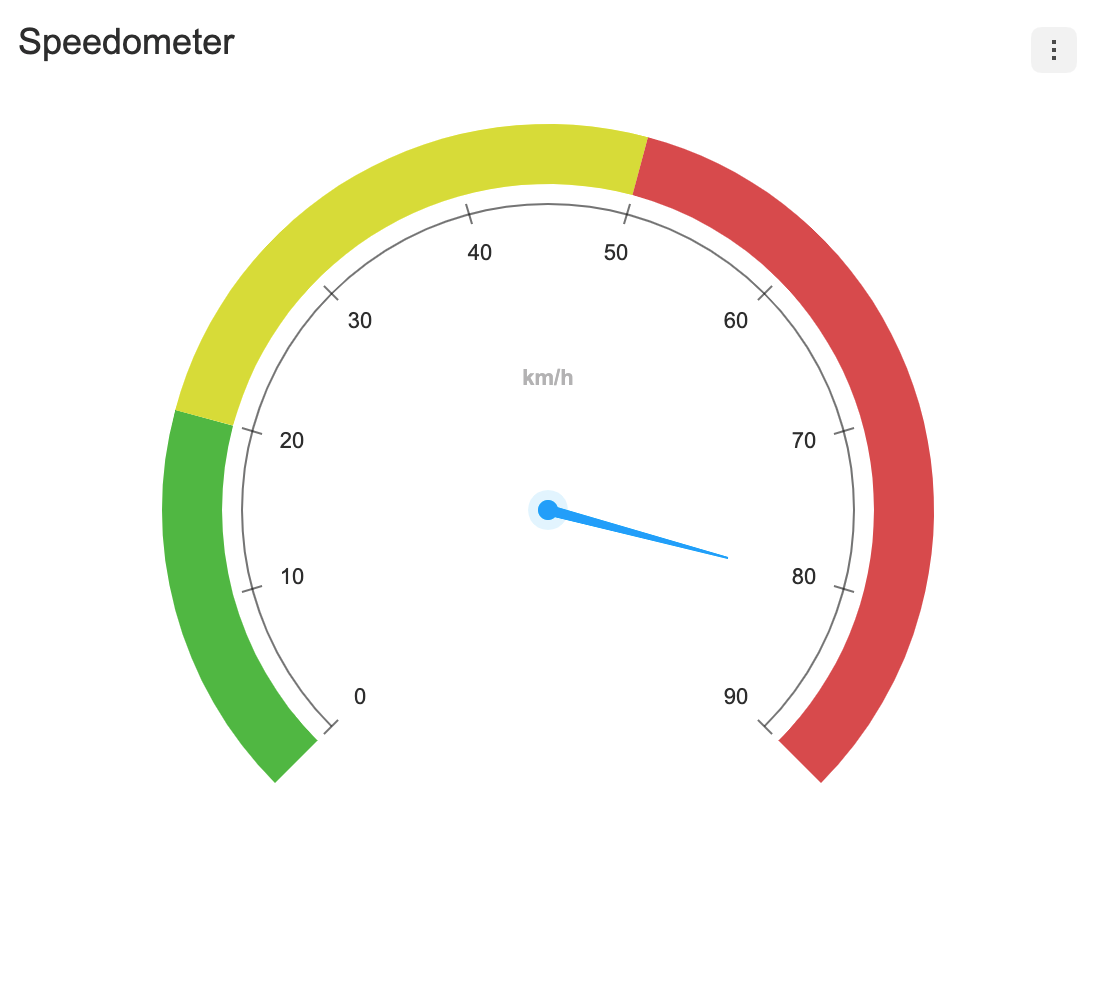

The following image shows the series.dataLabels option and the theme option set.

gauge-solid-without-clockhand-on-theme

dataLabels

Data labels display information regarding the series on the chart. The following are the options for dataLabels.

type options = {
  ...
  series: {
    dataLabels: {
      visible?: boolean;
      offsetX?: number;
      offsetY?: number;
      formatter?: (value) => string;
    };
  };
};
Name Type Details
visible boolean Whether to make the data label visible
offsetX number X offset of the data label position
offsetY number Y offset of the data label position
formatter function Takes the value of the data as its parameter and defines the format to be displayed
// 기본
const options = {
  series: {
    dataLabels: { visible: true }
  }
};

gauge-dataLabels

Series theme

The following is a list of themes that can be modified in the Gauge chart. The value for the data label style includes the basic labels. Themes can be used to create a text bubble without a tail.

interface GaugeChartSeriesTheme {
  colors?: string[];
  areaOpacity?: number;
  solid?: SolidTheme;
  clockHand?: ClockHandTheme;
  pin?: PinTheme;
  hover?: {
    clockHand?: ClockHandTheme;
    pin?: PinTheme;
    solid?: Omit<SolidTheme, 'backgroundSector'>;
  };
  select?: {
    clockHand?: ClockHandTheme;
    pin?: PinTheme;
    solid?: Omit<SolidTheme, 'backgroundSector'>;
    areaOpacity?: number;
    restSeries?: {
      areaOpacity?: number;
    };
  };
  dataLabels?: CommonDataLabelBoxTheme;
}

type ClockHandTheme = {
  color?: string;
  size?: string | number | number[] | string[];
  baseLine?: number;
};

type PinTheme = {
  radius?: number;
  color?: string;
  borderWidth?: number;
  borderColor?: string;
};

type SolidTheme = {
  barWidth?: number | string;
  lineWidth?: number;
  strokeStyle?: string;
  backgroundSector?: { color?: string };
  shadowColor?: string;
  shadowBlur?: number;
  shadowOffsetX?: number;
  shadowOffsetY?: number;
  color?: string;
};

type CommonDataLabelBoxTheme = {
  useSeriesColor?: boolean;
  lineWidth?: number;
  textStrokeColor?: string;
  shadowColor?: string;
  shadowBlur?: number;
  fontSize?: number;
  fontFamily?: string;
  fontWeight?: string | number;
  color?: string;
  textBubble?: {
    visible?: boolean;
    paddingX?: number;
    paddingY?: number;
    backgroundColor?: string;
    borderRadius?: number;
    borderColor?: string;
    borderWidth?: number;
    shadowColor?: string;
    shadowOffsetX?: number;
    shadowOffsetY?: number;
    shadowBlur?: number;
  };
};
Name Type Details
colors string[] Colors for the series
areaOpacity number Area opacity of the entire chart when all series have been activated
solid object Solid Sector Style
solid.barWidth object Width of the series' sector
solid.lineWidth number | string Series' sector border width
solid.strokeStyle string Series' sector border color
solid.backgroundSector object Style of the background sector
solid.backgroundSector.color string Background color of the series' sector
solid.shadowColor string Series' sector shadow color
solid.shadowBlur number Series' sector shadow Blur
solid.shadowOffsetX number Series' sector shadow x offset
solid.shadowOffsetY number Series' sector shadow y offset
solid.color string Series' sector color
clockHand object Clock-hand Style
clockHand.color string Color of the clock-hand
clockHand.size number Length of the clock-hand
clockHand.baseLine number Base line of the clock-hand
pin object Pin Style
pin.radius number Radius of pin
pin.color string Color of pin
pin.borderWidth number Border width of pin
pin.borderColor string Border color of pin
hover object Style used when the cursor hovers over the series
select object Style used when series.selectable: true and a series is selected
dataLabels object Style for the data labels
dataLabels.useSeriesColor boolean Whether to use the series colors for the data label texts
dataLabels.lineWidth number Text stroke width
dataLabels.textStrokeColor string Text stroke color
dataLabels.shadowColor string Text shadow color
dataLabels.shadowBlur number Text shadow blue
dataLabels.fontSize number Font size
dataLabels.fontFamily string Font name
dataLabels.fontWeight string Font weight
dataLabels.color string Text color; does not work when useSeriesColor: true
dataLabels.textBubble object Text bubble configurations
dataLabels.textBubble.visible boolean Whether to use the text bubble
dataLabels.textBubble.paddingX number Horizontal padding
dataLabels.textBubble.paddingY number Vertical padding
dataLabels.textBubble.backgroundColor string Text bubble background color
dataLabels.textBubble.borderRadius number Text bubble border radius
dataLabels.textBubble.borderColor string Text bubble border color
dataLabels.textBubble.borderWidth number Text bubble border width
dataLabels.textBubble.shadowColor string Text bubble shadow color
dataLabels.textBubble.shadowOffsetX number Text bubble shadow x offset
dataLabels.textBubble.shadowOffsetY number Text bubble shadow y offset
dataLabels.textBubble.shadowBlur number Text bubble shadow blur

The theme is configured using the theme option, and the series theme is configured using the theme.series. The following example changes the color and the border style and applies solid for a gauge chart.

const options = {
  series: {
    solid: true,
  },
  theme: {
    series: {
      colors: [color],
      solid: {
        barWidth: 10,
        lineWidth: 5,
        strokeStyle: '#000',
        backgroundSector: { color: 'rgba(189, 67, 67, 0.1)' },
        hover: {
          color: '#ff0000',
          lineWidth: 5,
          strokeStyle: '#000',
        },
        select: {
          lineWidth: 3,
          strokeStyle: '#000',
        },
      },
    },
  },
};

The code above results as shown below.

gauge-series-theme

The code below is an option to change the chart style by applying the theme that can be used in the Gauge chart.

const options = {
  chart: { width: 700, height: 400 },
  circularAxis: { title: 'km/h', scale: { min: 0, max: 100 } },
  series: {
    angleRange: {
      start: 270,
      end: 90,
    },
    dataLabels: { visible: true, offsetY: -200, formatter: (value) => `${value} %` },
  },
  plot: {
    bands: [
      { range: [0, 20], color: '#e4a0c2' },
      { range: [20, 50], color: '#dc4d94' },
      { range: [50, 100], color: '#a90757' },
    ],
  },
  theme: {
    chart: { fontFamily: 'Impact' },
    circularAxis: {
      title: { fontWeight: 500, fontSize: 30, color: baseColor },
      label: { color: baseColor, fontSize: 15 },
      tick: { strokeStyle: baseColor },
      strokeStyle: baseColor,
    },
    series: {
      clockHand: {
        color: baseColor,
        baseLine: 10,
      },
      pin: {
        radius: 10,
        color: baseColor,
        borderWidth: 5,
        borderColor: 'rgba(101, 4, 52, 0.3)',
      },
      dataLabels: {
        fontSize: 30,
        color: '#fff',
        textBubble: {
          visible: true,
          backgroundColor: baseColor,
          paddingX: 5,
          paddingY: 5,
        },
      },
    },
    plot: { bands: { barWidth: 50 } },
  },
};

gauge-theme
