BoxPlot Chart

API information regarding each chart is not addressed in this document. Refer to the API Guide.

Creating the Chart

There are two different ways to create the BoxPlot chart. The BoxPlot chart can be created through the constructor function or the static function. The two methods both result in returning an instance of the chart. The HTML element in which the chart is drawn el, data data, and the options object options are taken as parameters. If the element in which the chart is drawn contains elements other than the chart itself, it may unintentionally affect the chart. Therefore, it is recommended that you use an empty HTML element.

import { BoxPlotChart } from '@toast-ui/chart';

const chart = new BoxPlotChart({el, data, options});

// or

import Chart from '@toast-ui/chart';

const chart = Chart.boxPlotChart({el, data, options});

Basic Chart

Data Type

categories values are shown on the x-axis, and the series value must be completed with the name and the data. The outlier data can be used as necessary. The name is used to identify each series and its id must be unique.

const data = {
  categories: ['Budget', 'Income', 'Expenses', 'Debt'],
  series: [
    {
      name: '2020',
      data: [
        [1000, 2500, 3714, 5500, 7000],
        [1000, 2750, 4571, 5250, 8000],
        [3000, 4000, 4714, 6000, 7000],
        [1000, 2250, 3142, 4750, 6000]
      ],
      outliers: [
        [0, 14000],
        [2, 10000],
        [3, 9600]
      ],
    },
    {
      name: '2021',
      data: [
        [2000, 4500, 6714, 11500, 13000],
        [3000, 5750, 7571, 8250, 9000],
        [5000, 8000, 8714, 9000, 10000],
        [7000, 9250, 10142, 11750, 12000]
      ],
      outliers: [[1, 14000]]
    },
  ],
};


visible

Each series can have visible option. The visible option determines whether the series is displayed when the chart is first drawn. The default is true.

const data = {
  categories: ['Budget', 'Income', 'Expenses', 'Debt'],
  series: [
    {
      name: '2020',
      data: [
        [1000, 2500, 3714, 5500, 7000],
        [1000, 2750, 4571, 5250, 8000],
        [3000, 4000, 4714, 6000, 7000],
        [1000, 2250, 3142, 4750, 6000]
      ],
      outliers: [
        [0, 14000],
        [2, 10000],
        [3, 9600]
      ],
      visible: false
    },
    {
      name: '2021',
      data: [
        [2000, 4500, 6714, 11500, 13000],
        [3000, 5750, 7571, 8250, 9000],
        [5000, 8000, 8714, 9000, 10000],
        [7000, 9250, 10142, 11750, 12000]
      ],
      outliers: [[1, 14000]]
    },
  ],
}

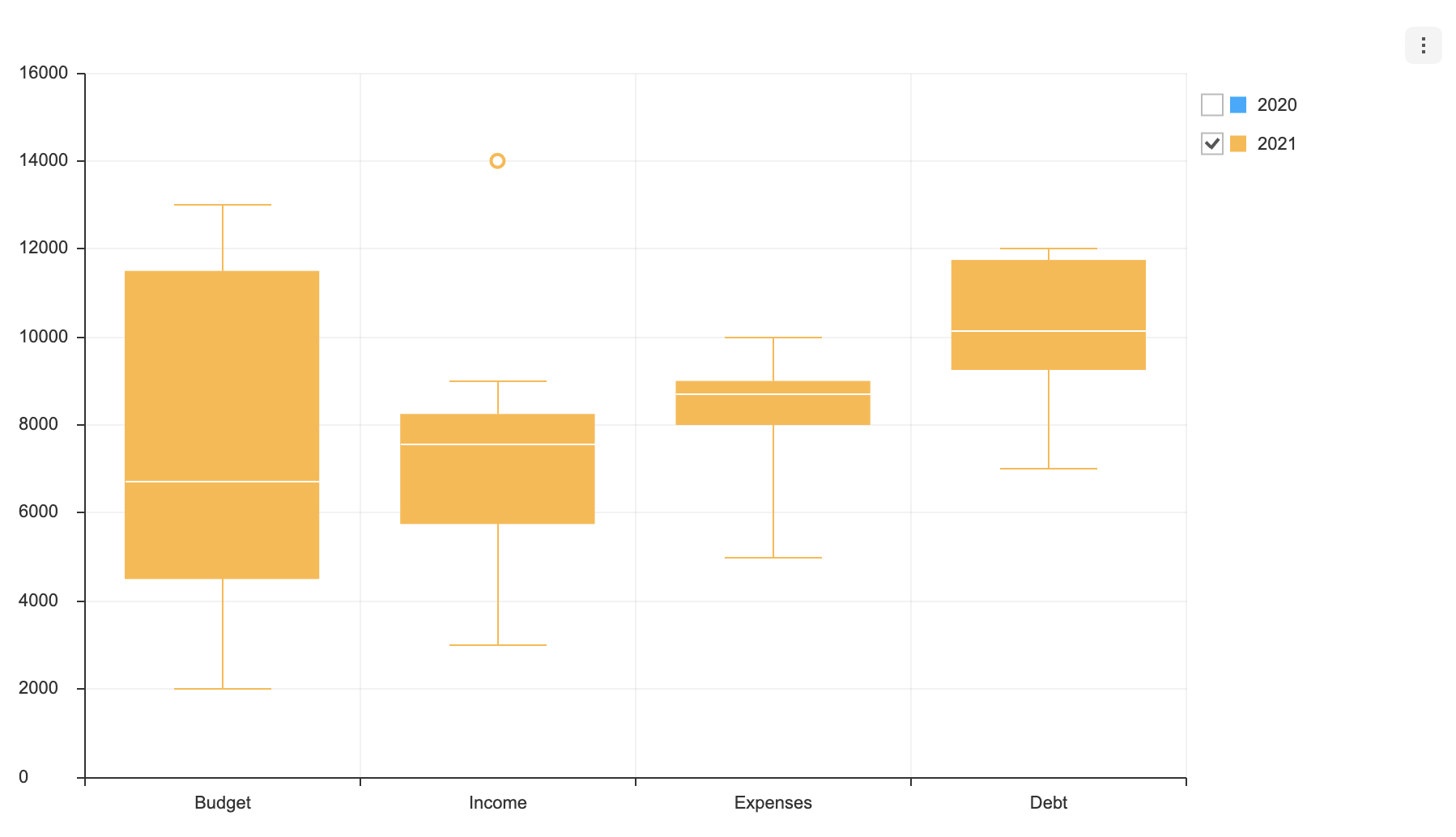

If you create a chart by applying the above option, you can see that the checkbox is unchecked.


Options

options should be used as an object.

type options = {
  chart?: {
    // ...
  },
  xAxis?: {
    // ...
  },
  yAxis?: {
    // ...
  },
  legend?: {
    // ...
  },
  exportMenu?: {
    // ...
  },
  tooltip?: {
    // ...
  },
  plot?: {
    // ...
  },
  responsive?: {
    // ...
  },
  theme?: {
    // More explanations in the `theme` chapter.
  },
  series?: {
    selectable?: boolean;
    eventDetectType?: 'point' | 'grouped';
  }
};

Common options that can be used with this chart are not addressed in this document. Refer to the respective options guide. (Links: chart Options, Axes Legend, Export, Tooltip, Plot, responsive Options )

selectable

Makes the series selectable.

  • default: false
const options = {
  series: {
    selectable: true
  }
};


selectable option, accompanied by on API's selectSeries and unselectSeries, grants further control over the series.

eventDetectType

Defines ways to detect data when the cursor hovers over to display the tooltip and when the mouse is clicked to select a series.

Type Details
point A single series is detected when a mouse comes within the individual series' detectable area. Only a single series is selected with respect to the current position of the cursor.
grouped All data that are equal with respect to the x-axis are detected.
  • default: point

If the eventDetectType is set to 'point', outliers are detected independently aside from the area that displays the median, first and fourth quartile, minimum/maximum values.

eventDetectType.point

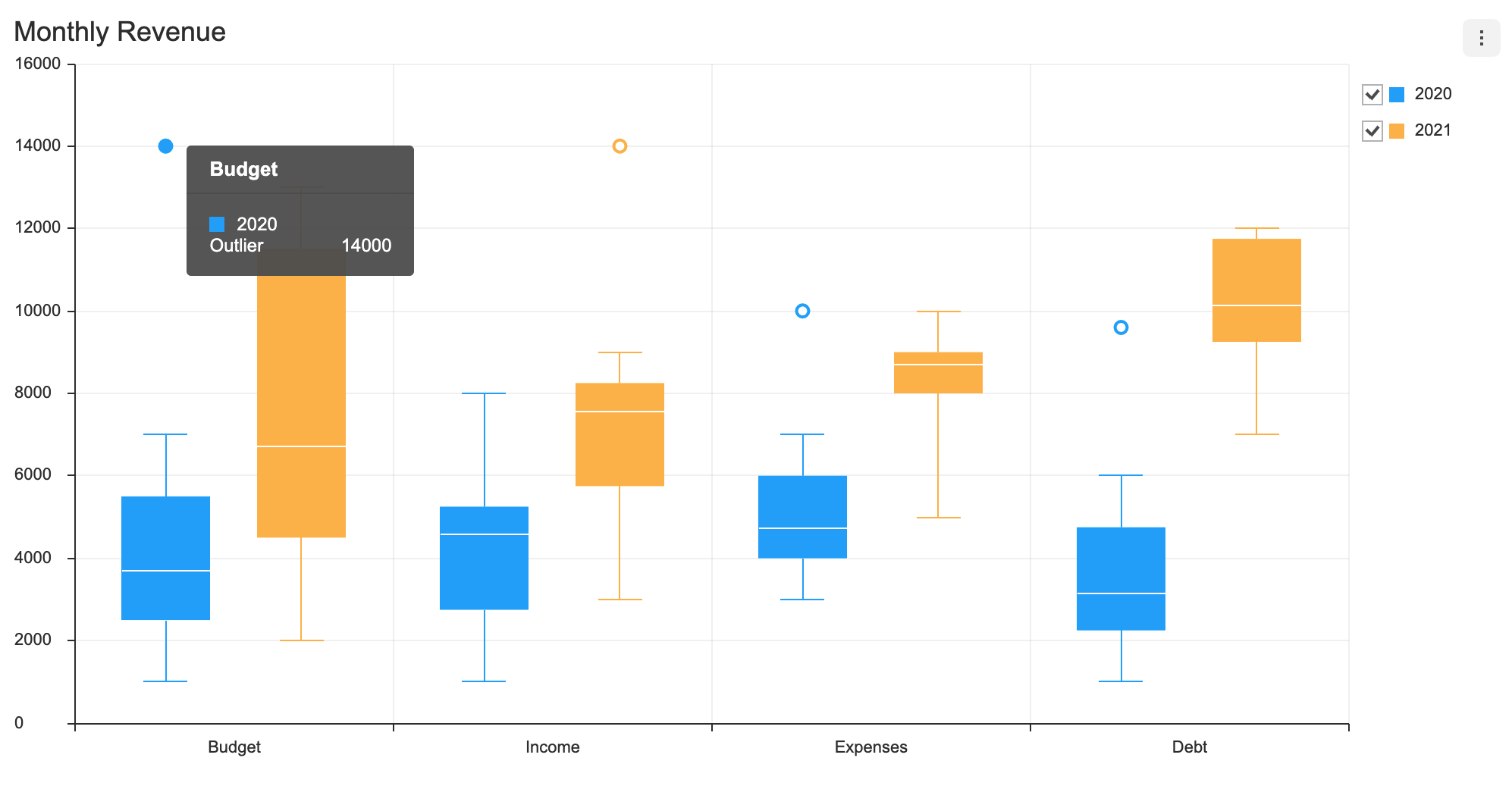

If the eventDetectType is set to 'grouped', the series' median, first and fourth quartile, minimum/maximum values, and outliers are all detected.

const options = {
  series: {
    eventDetectType: 'grouped'
  }
};

eventDetectType.grouped

Series Theme

The following is a list of themes that can be modified in the BoxPlot chart.

interface BoxPlotChartSeriesTheme {
  areaOpacity?: number;
  colors?: string[];
  barWidth?: number | string;
  barWidthRatios?: {
    barRatio?: number;
    minMaxBarRatio?: number;
  };
  dot: {
    color?: string;
    radius?: number;
    borderColor?: string;
    borderWidth?: number;
    useSeriesColor?: boolean;
  };
  line?: {
    whisker?: { lineWidth?: number; color?: string };
    minimum?: { lineWidth?: number; color?: string };
    maximum?: { lineWidth?: number; color?: string };
    median?: { lineWidth?: number; color?: string };
  };
  rect?: {
    borderColor?: string;
    borderWidth?: number;
  };
  hover?: {
    color?: string;
    rect?: {
      borderColor?: string;
      borderWidth?: number;
    };
    dot?: {
      color?: string;
      radius?: number;
      borderColor?: string;
      borderWidth?: number;
      useSeriesColor?: boolean;
    };
    line?: {
      whisker?: { lineWidth?: number; color?: string };
      minimum?: { lineWidth?: number; color?: string };
      maximum?: { lineWidth?: number; color?: string };
      median?: { lineWidth?: number; color?: string };
    };
    shadowColor?: string;
    shadowOffsetX?: number;
    shadowOffsetY?: number;
    shadowBlur?: number;
  };
  select?: {
    color?: string;
    rect?: {
      borderColor?: string;
      borderWidth?: number;
    };
    dot?: {
      color?: string;
      radius?: number;
      borderColor?: string;
      borderWidth?: number;
      useSeriesColor?: boolean;
    };
    line?: {
      whisker?: { lineWidth?: number; color?: string };
      minimum?: { lineWidth?: number; color?: string };
      maximum?: { lineWidth?: number; color?: string };
      median?: { lineWidth?: number; color?: string };
    };
    shadowColor?: string;
    shadowOffsetX?: number;
    shadowOffsetY?: number;
    shadowBlur?: number;
    areaOpacity?: number;
    restSeries?: {
      areaOpacity?: number;
    };
  };
}
Name Type Details
colors string[] Series colors
areaOpacity number Area opacity of the entire chart when all series have been activated
barWidth number | string Series box width
barWidthRatios object Length ratio between box width and min/max calues
barWidthRatios.barRatio number Box width ratio (default: 1)
barWidthRatios.minMaxBarRatio number Min/max length ratio (default: 0.5)
dot object Styles used for dots to display outliers
dot.color string Dot background color
dot.radius number Dot radius
dot.borderColor string Dot border color
dot.borderWidth number Dot border width
dot.useSeriesColor boolean Whether to use the series colors for the dots
line object Styles for the line that connects the median, min/max values, and the whiskers (the line that connects the maximum value to the minimum value)
line.whisker object Styles for the line that connects the maximum value to the minimum value
line.whisker.lineWidth number Whisker line width
line.whisker.color string Whisker line color
line.minimum object Styles for the line that represents the minimum
line.maximum object Styles for the line that represents the maximum
line.median object Styles for the line that represents the median
rect object Styles for the boxes that represent the first and fourth quartile
rect.borderColor string Box border color
rect.borderWidth number Box border width
hover object Styles for when the cursor hovers over the data
select object Styles for when series.selectable: true and a series is selected
select.areaOpacity number Opacity of the selected series area
select.restSeries object Styles for the series that have not been selected

The theme is configured using the theme option, and the series theme is configured using the theme.series. The following example changes the color, width, and the on-hover style for a boxPlot series.

const options = {
  theme: {
    series: {
      colors: ['#EE4266', '#FFD23F'],
      barWidth: 40,
      barWidthRatios: {
        barRatio: 1,
        minMaxBarRatio: 0.8,
      },
      dot: {
        radius: 5,
        borderWidth: 3,
        borderColor: '#000000',
        useSeriesColor: true,
      },
      rect: {
        borderWidth: 2,
        borderColor: '#000000',
      },
      line: {
        whisker: {
          lineWidth: 2,
          color: '#000000',
        },
        maximum: {
          lineWidth: 2,
          color: '#000000',
        },
        minimum: {
          lineWidth: 2,
          color: '#000000',
        },
        median: {
          lineWidth: 2,
          color: '#000000',
        },
      },
      hover: {
        color: '#96D6ED',
        rect: { borderColor: '#00ff00', borderWidth: 2 },
        dot: { radius: 6 },
        shadowColor: 'rgba(0, 0, 0, 0.7)',
        shadowOffsetX: 4,
        shadowOffsetY: 4,
        shadowBlur: 6,
        line: {
          whisker: {
            lineWidth: 2,
            color: '#00ff00',
          },
          maximum: {
            lineWidth: 2,
            color: '#00ff00',
          },
          minimum: {
            lineWidth: 2,
            color: '#00ff00',
          },
          median: {
            lineWidth: 2,
            color: '#00ff00',
          },
        },
      }
    }
  }
};

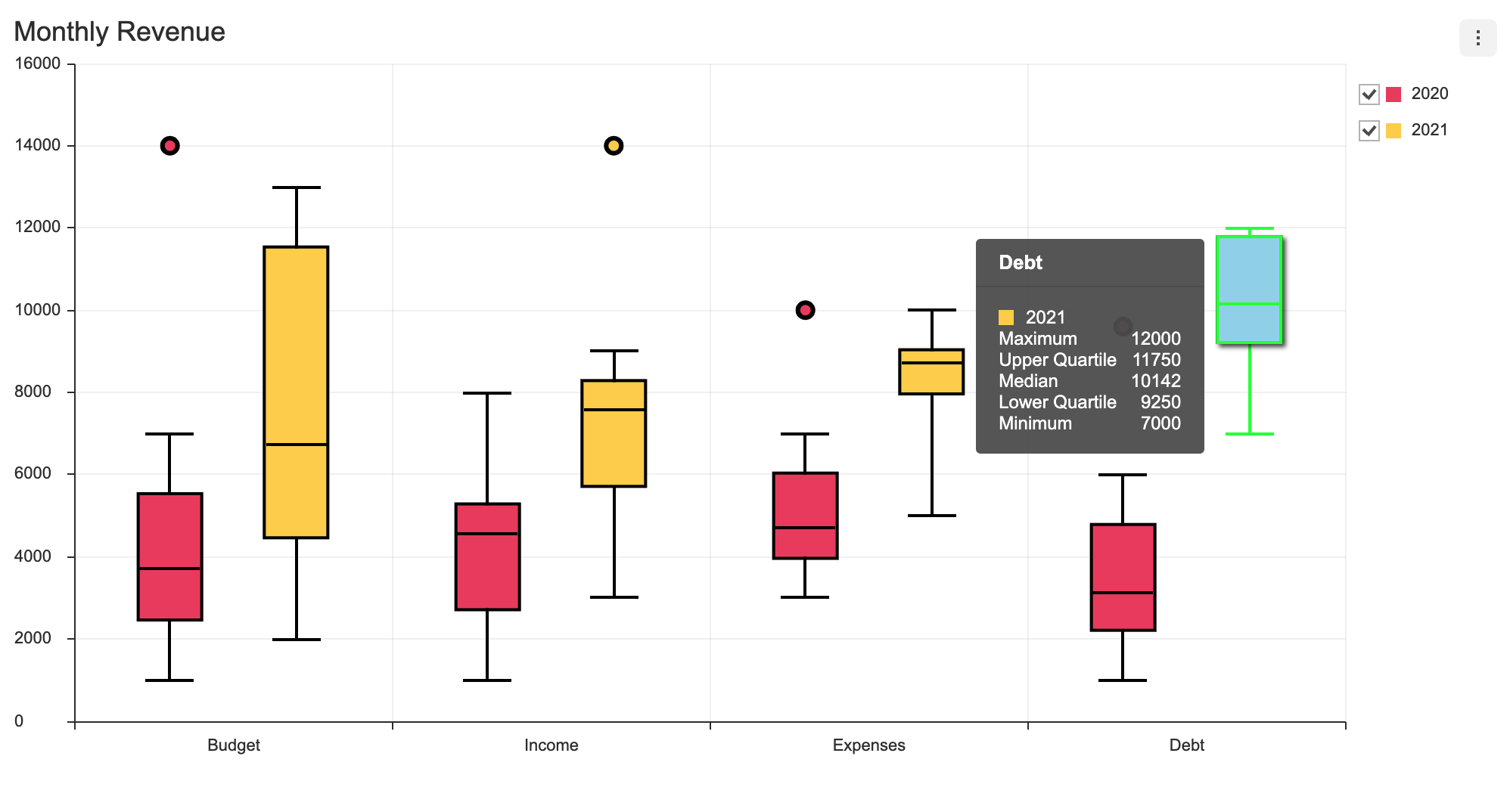

The code above results as shown below.
